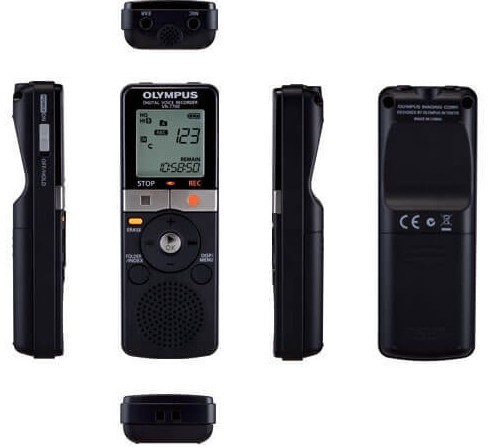

Digital recorder with clear sound and simple design that is easy to use, even for beginners
The VN-7700 can be used for a variety of purposes including recording memos, recording practices and classes, and creating minutes. The clear sound quality ensures this model is easy to use even for users who have never used a digital recorder before. Various enhancements have been implemented to improve operability including an amazing 86 hours of battery life.
|Box Contents||2 AAA alkaline batteries, Carrying Case, Instruction Manual|
|Optional Accessories||Compact Zoom Microphone (Unidirectional): ME34, Monaural Microphone (Unidirectional): ME52W, Monaural Tie-Clip Microphone (Omnidirectional): ME15, Telephone Pickup: TP8, Connecting Cord: KA333 and warranty card|
|Memory||Internal memory (2GB)|
|Maximum headphone output||3mW (when 8Ω load)|
|Speaker||28mm dynamic speaker|
|Microphone jack||3.5mm, impedance 2kΩ|
|Earphone jack||3.5mm, impedance 8Ω or more|
|Speaker maximum working output||190mW (8Ω speaker)|
|General frequency response||HQ mode: 150Hz - 7.9kHz|
SP mode: 300Hz - 4.7kHz
LP mode: 300Hz - 2.9kHz
|Approximate recording times||HQ mode: Approx. 75 hrs.|
SP mode: Approx. 194 hours
LP mode: Approx. 1,100 hours
|Power supply||2 AAA batteries (LR03)|
|External dimensions||104 (L) x 37 (W) x 19.1 (D) mm (excluding largest projections)|
|Weight||66g (including batteries)|
|Operating temperature||0 - 42°C|
Approximate battery duration
|Recording mode||When recording||When playback through built-in speaker||When playback through earphones|
|HQ||Approx. 68 hours||Approx. 20 hours||Approx. 49 hours|
|SP||Approx. 86 hours||Approx. 21 hours||Approx. 53 hours|
|LP||Approx. 57 hours||Approx. 21 hours||Approx. 57 hours|
- Use the values above as a rough guide only.
- Battery life was tested in accordance with the Olympus testing method. It will significantly vary depending on the batteries used and operating conditions.
- Specifications are subject to change without notice.
